NM400 Kubota 30t Excavator Quick Coupler Hydraulic

Brand Name : Huitong

Model Number : HT014

CertifiPCion : ISO9001

Place of Origin : Guangzhou,China

MOQ : 1 Pcs

Price : $350-700/pcs

Payment Terms : D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 pcs per mounth

Delivery Time : 8-16 workdays

Packaging Details : standard package

Condition : New

After-sales service provided : Online support,Video technical support

Warranty : 1 Year

Color : customised

Type : Mechanical quick hitch

Moving type : Crawler Excavator

Product name : excavator quick hitch

Material : Q345B+NM400

Contact Now

Mini Excavator Quick Coupler For Kubota 30t Excavator Quick Coupler Hydraulic

product details:

Quick couplers (also called quick hitches) are used with construction machines to allow the rapid change of buckets and attachments on the machine. They remove the need to use hammers to manually drive out and insert the mounting pins for attachments. They can be used on excavator, mini excavator, backhoe loader and so on.
Type
Quick Hitch Coupler
Color
Yellow, Blue,Orange,Black,Customized
Material
Q345B
Suitable Brand
All Brands Excavators
AppliPCion
excavating machinery
Warranty
1 Year
Features
Full Automatic Double Safety System
One Body Design
Versatility, convenient and reliable
Suitable for all brands excavators
Model
Contents		 MINI 02 04 06 08 10 17
Operating Weight T <4 4-6 7-8 12-18 19-24 25-32 33-40
Overall Length(L) mm 306-475 534-545 600 765 924-944 983-1050 1006-1173
Overall Height(H) mm 230-268 307 310 388 492 574 558-610
Overall Width(W) mm 175-242 258-263 270-280 353-436 449-483 543-568 606-663
Arm Width(W1) mm 86-185 155-170 180-200 232-315 306-340 375-411 416-469
Installation
width(W2)		 mm 82 151-164 176-196 256 328 397 397
Equpping
Distance(L2)		 mm 90-140 208-315 340-450 340-486 256-390 413-590 520-590
Pin Diameter(D) mm 25-40 45-50 50 50-70 70-80 80-90 90-120
Offset Height(H1) mm 159-165 150 195 220 275 300 360
Working pressure Kgf/cm2 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Oil flow l/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20

Excavator Hydraulic Quick Couplers: Driven by a hydraulic system, Const hydraulic quick coupler makes excavator attachments switch automatically.
Excavator Manual Quick Couplers: Working like bolt and nut, Const mechanical quick coupler switches attachments manually.

NM400 Kubota 30t Excavator Quick Coupler HydraulicNM400 Kubota 30t Excavator Quick Coupler HydraulicNM400 Kubota 30t Excavator Quick Coupler Hydraulic



Product Tags:

30t Excavator Quick Coupler



Kubota Excavator Quick Coupler



NM400 Excavator Quick Coupler


Quality NM400 Kubota 30t Excavator Quick Coupler Hydraulic wholesale

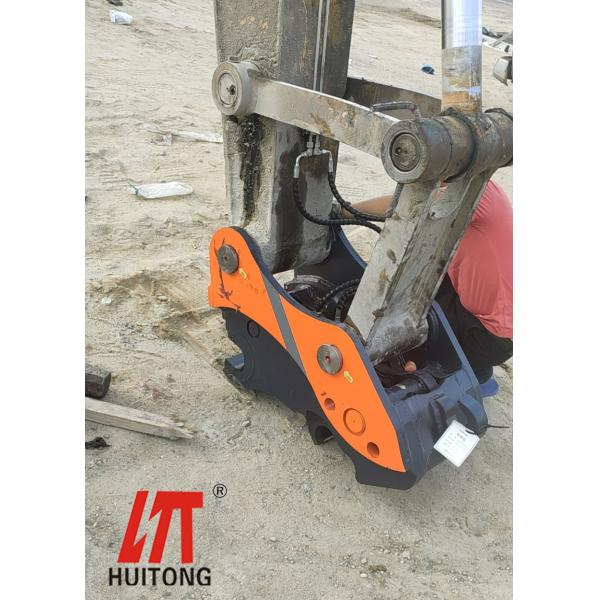

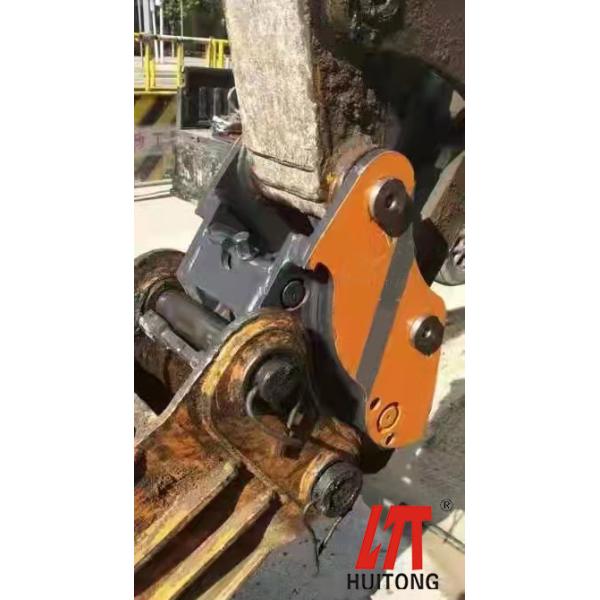

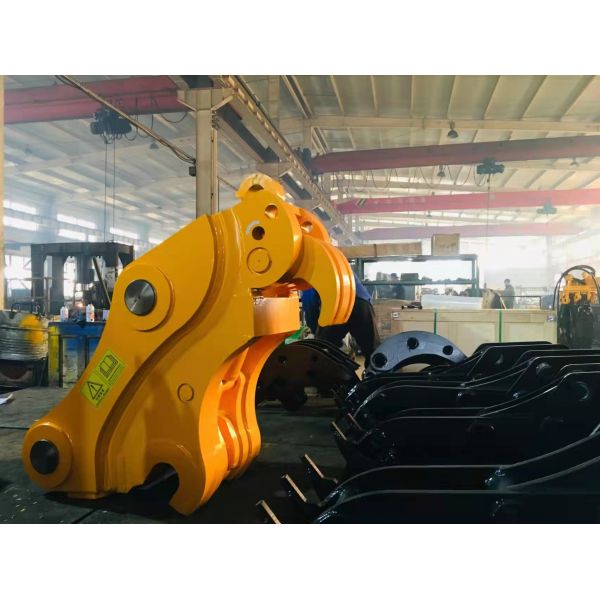

NM400 Kubota 30t Excavator Quick Coupler Hydraulic Images
